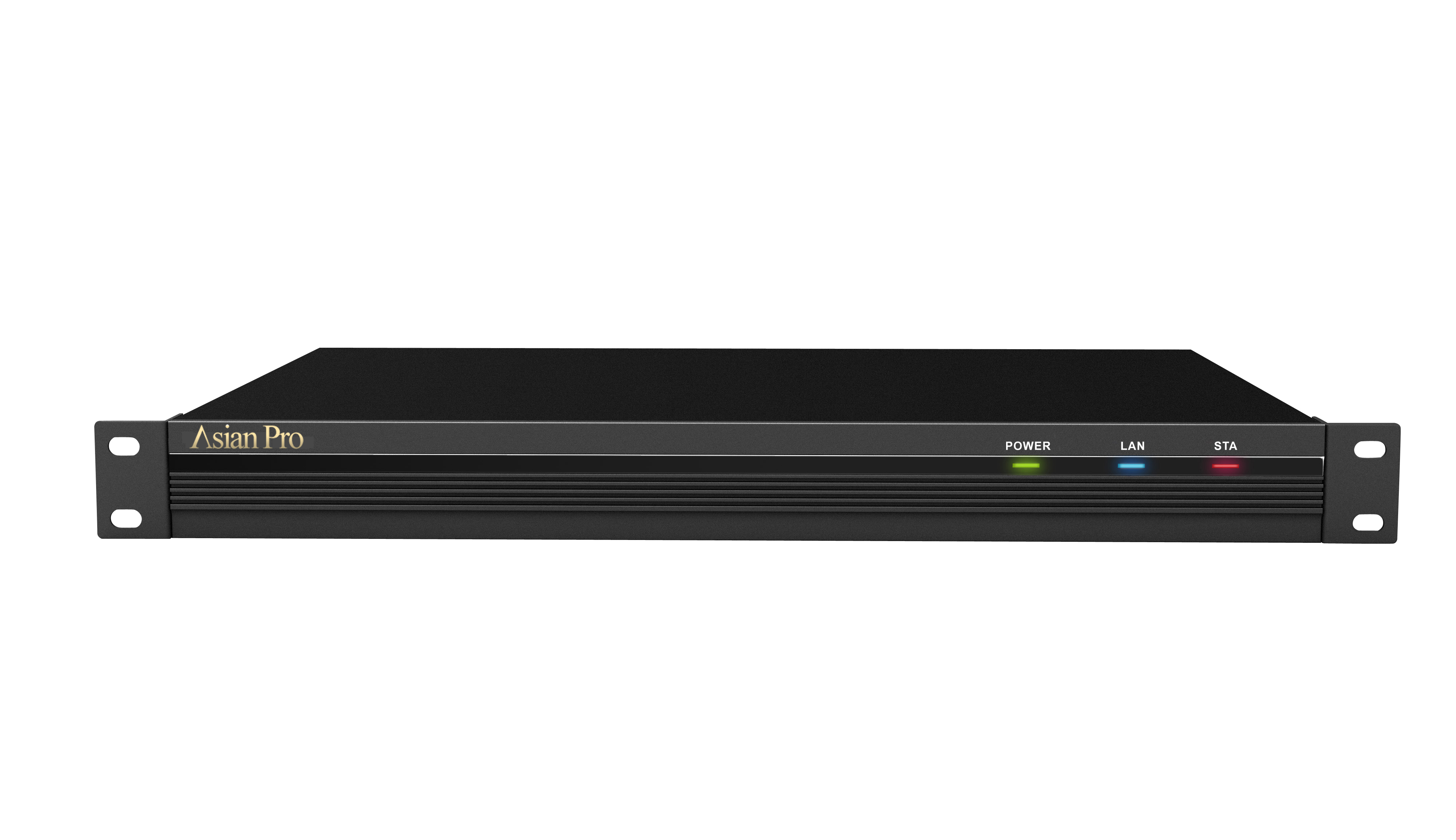

The AP-M1 controller is the central hub of the Asian Pro control system.
It connects to every device and component of the control system through its output ports, expansion cards and proprietary 4 wire bus.
The AP-M1 controller is powered by a 32 bit microprocessor able to perform intricate logic calculations at warp speed.
Embedded Linux OS manages the I/O operation of all ports.
These ports include four RS232 on DB9 male, 4 RS232/422/485 on Phoenix, 8 Relay, 8 Digital I/O and 8 Infrared/one-way serial outputs.
The M1 also includes an internal web server with Browser Support 2.0 software and supporting button design templates, feedback buttons including vertical and horizontal compression gauges and control from any web browser enabled device including iPad, iPod, iPhone, Android, PC…..
| Specifications | |
| Model | AP-M1 |
| CPU | 32 bit GT2000 processor 400 MIPS |
| Memory | 192MB (128MB Flash, 64MB SDRAM) |
| Ports | 8 IR (Infrared) or one way serial (RS-232) |
| 8 digital I/O | |
| 8 isolated low voltage relay (normally open) | |
| 4 DB9 two-way serial (RS-232)COM(A,B,C) | |
| 4 RS232/422/485 on Phoenix screw block | |
| 1 four wire proprietary bus | |
| 1 RJ45 Ethernet | |
